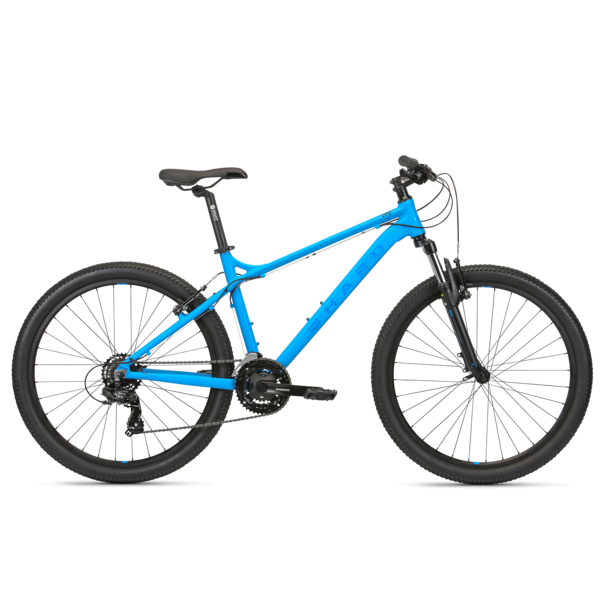

Haro Flightline One

Specs FRAMESET FRAME Haro Flightline FL4G 6000 series alloy FORK HL CH-389, 26″w/ 80mm Travel COLORS Matte Vivid Blue, Matte Black/Neon Red WEIGHT 28.90lbs DRIVETRAIN CRANKS Shimano FC-TY301 42/34/24T PEDALS Nylon body, Chromoly axles,Platform CHAIN KMC Z7, 7-spd, 1/2″x3/32 BOTTOM BRACKET BBUN100 Sealed cartridge FRONT DERAILLEUR Shimano Tourney TY-500 REAR DERAILLEUR Shimano Tourney TY-300 DERAILLEUR SHIFTER Shimano EF-41 3×7-spd FREEWHEEL/CASSETTE Shimano CS-HG200-7 7-spd cassette 12-32T WHEELS TIRES H-5120 26 x 2.25″ WHEELS/RIMS XD-180 alloy double wall HUBS Pivit alloy front hub, Shimano TY-500 cassette rear hub, 32h BRAKING SYSTEM BRAKES Promax TX-121 V-Brake BRAKE LEVERS Shimano EF-41 OTHER COMPONENTS GRIPS/TAPE Haro MTB Kraton HANDLE BAR Pivit alloy 25mm riser bar 31.8mm STEM Pivit melt forged, 31.8mm HEADSET 1-1/8″ threadless w/ steel cups, loose ball, Nylon Top SADDLE Haro Flightline SEAT POST Pivit alloy micro adjust 30.9x350mm SEAT CLAMP Pivit alloy 34.9mm quick release   SIZE XS S M L XL A. Seat Tube (C-T) 330mm (13″) 381mm (15″) 432mm (17″) 483mm (19″) 533mm (21″) B. Top Tube (Effective) 550mm (21.7″) 570mm (22.4″) 595mm (23.4″) 613mm (24.1″) 625mm (24.6″) C. Head Tube Angle 69° 69° 69° 69° 69° D. Seat Tube Angle 73° 73° 73° 73° 72° E. Chainstay Length 425mm (16.7″) 425mm (16.7″) 425mm (16.7″) 425mm (16.7″) 425mm (16.7″) F. BB Drop 35mm (1.4″) 35mm (1.4″) 35mm (1.4″) 35mm (1.4″) 35mm (1.4″) G. Wheelbase 1038mm (40.9″) 1059mm (41.7″) 1085mm (42.7″) 1103mm (43.4″) 1105mm (43.5″) H. Head Tube Length 90mm (3.5″) 100mm (3.9″) 110mm (4.3″) 120mm (4.7″) 130mm (5.1″) I. Standover 642mm (25.3″) 673mm (26.5″) 692mm (27.2″) 732mm (28.8″) 764mm (30.1″) J. Stack Height 546mm (21.5″) 555mm (21.9″) 565mm (22.2″) 574mm (22.6″) 583mm (23″) K. Reach 383mm (15.1″) 400mm (15.7″) 422mm (16.6″) 438mm (17.2″) 436mm (17.2″) L. Fork Height 465mm (18.3″) 465mm (18.3″) 465mm (18.3″) 465mm (18.3″) 465mm (18.3″) M. Fork Offset 33mm (1.3″) 33mm (1.3″) 33mm (1.3″) 33mm (1.3″) 33mm (1.3″) N. Stem Length 60mm 60mm 70mm 80mm 80mm O. Bar Width 680mm 680mm 700mm 700mm 700mm P. Crank Length 170mm 170mm 170mm 175mm 175mm
