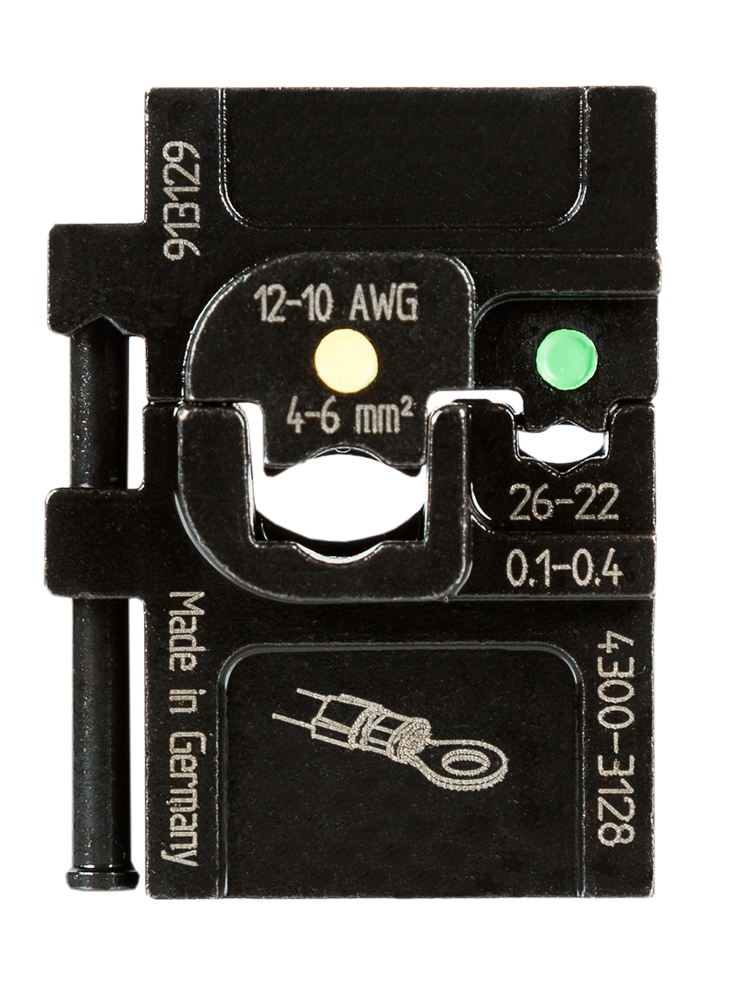

Pressmaster 4300-3128/AAA – Mobile die set

Description Features & Benefits Reliable – crimping performance is consistent and accurate with a parallel action stroke Easy to use – designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip Versatile – an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box Comfortable – the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions Hole in handle allows attachment of safety strap. Technical Data Length 29 mm/1.14″ Width 18 mm/0.71″ Height 39 mm/1.54″ Weight 66 gr/0.15 lb Wire size 0.1-6 mm2 / AWG 26-10 Crimp dimensions mm/mm2 0.1 – 0.4 mm2/4 – 6 mm2 Crimp dimensions inch/AWG AWG 26 – AWG 22/AWG 12 – AWG 10 Connector Insulated connectors Description For pre insulated green and yellow connectors. Life span, cycles 20,000
